Swan SI-150CBK Shaver

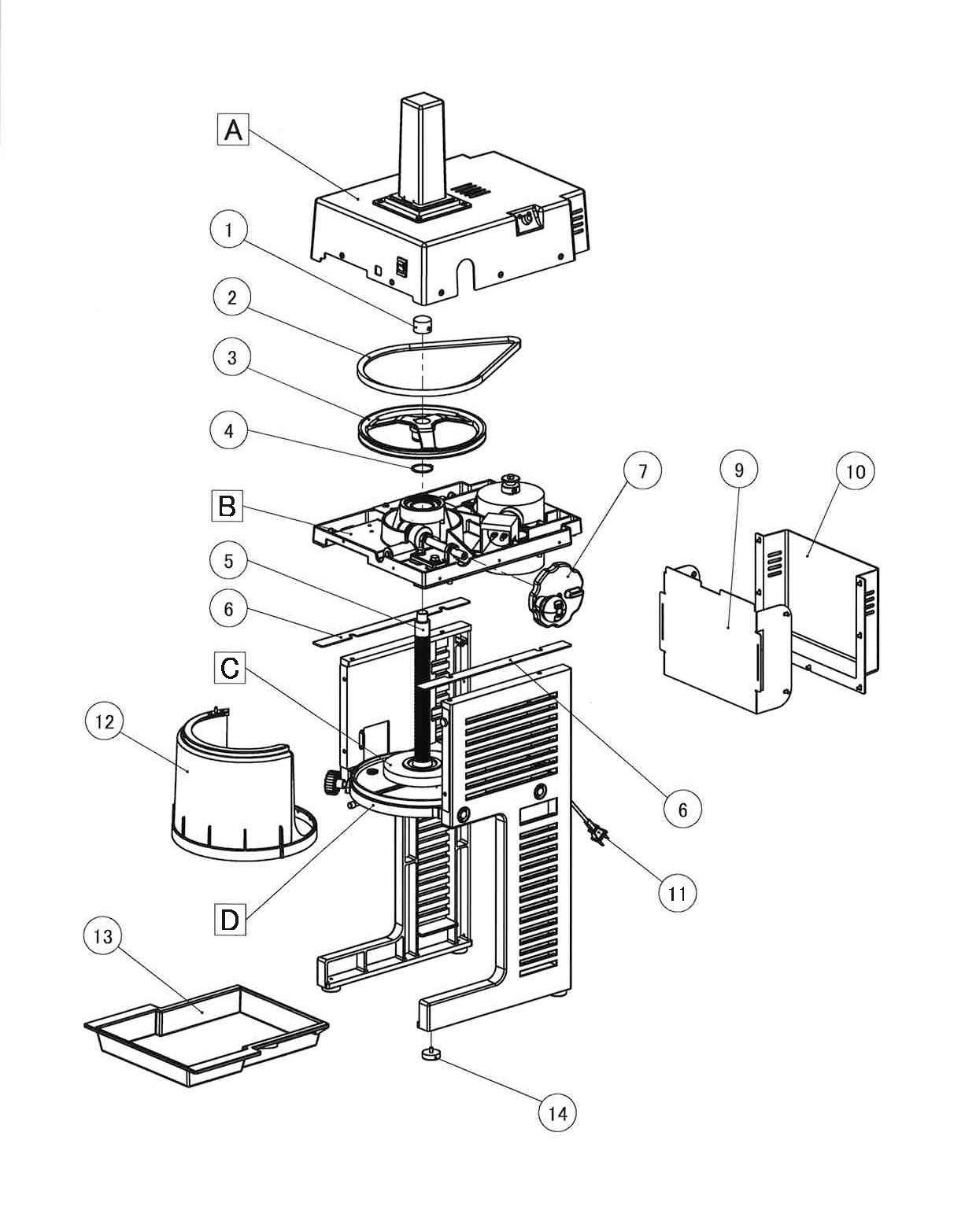

Diagram 1
Product Name
Price
Quantity
SI-150CBK #7 Ice Block Holder Crank
$99.20
SI-150CBK #10 Motor Cover
$99.20
SI-150CBK #13 Drip Tray
$62.40
SI-150CBK #14 Rubber Feet
$3.20
Out of stock
SI-150S #05 V-Belt
$14.32
SI-150S #06 Large V-Pulley
$239.36
SI-150S #07 Snap Ring Large
$12.80
SI-150S #17 Main Shaft
$216.48
SI-100E #44 115 Volt Plug with Cord
$40.00
Out of stock
SI-150S #39 Polycarbonate Shield
$128.40
Swan SI-150CBK Shaver

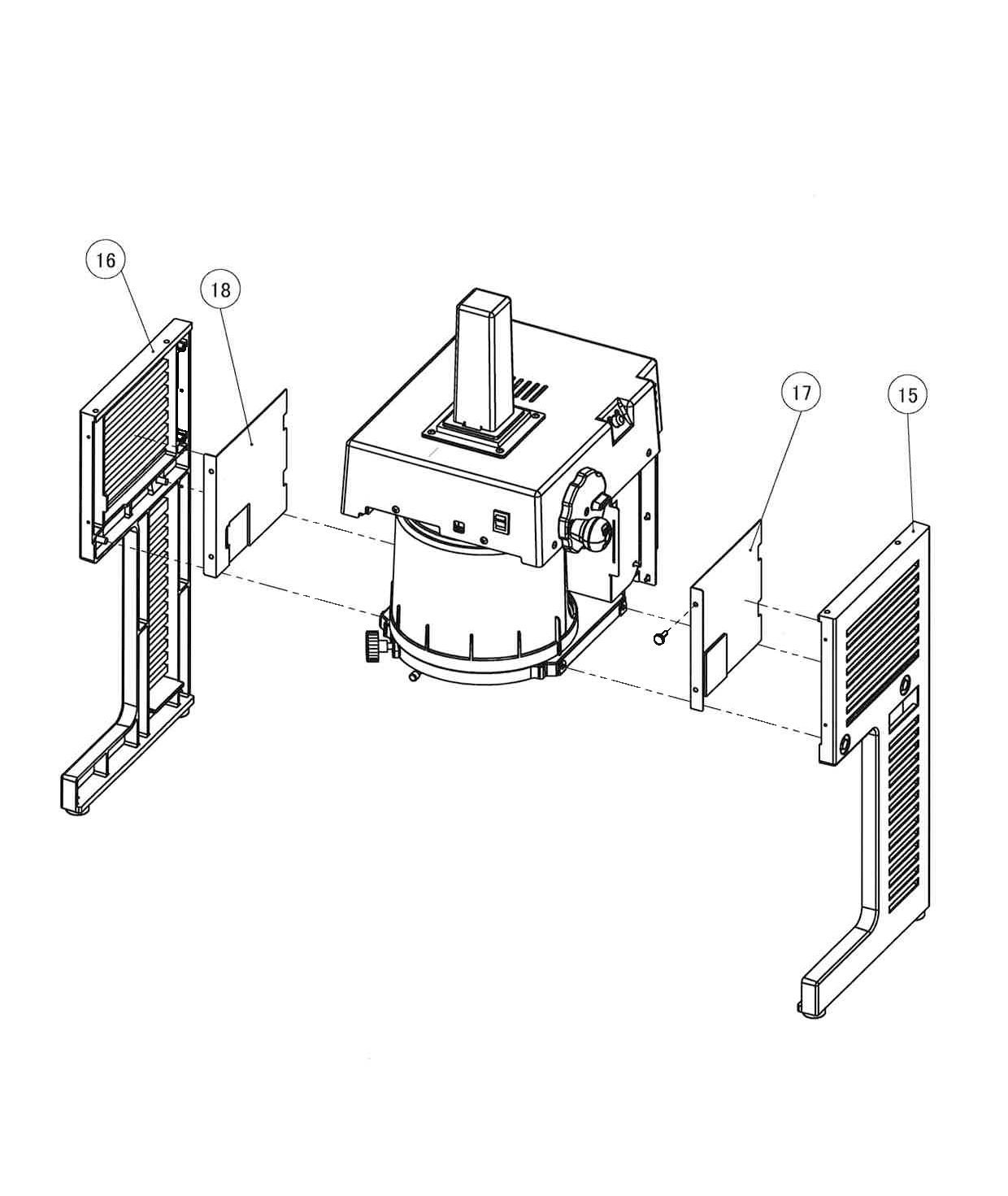

Diagram 2
Product Name
Price
Quantity
SI-150CBK #15 Side Frame R
$357.60
SI-150CBK #16 Side Frame L
$357.60
Swan SI-150CBK Shaver

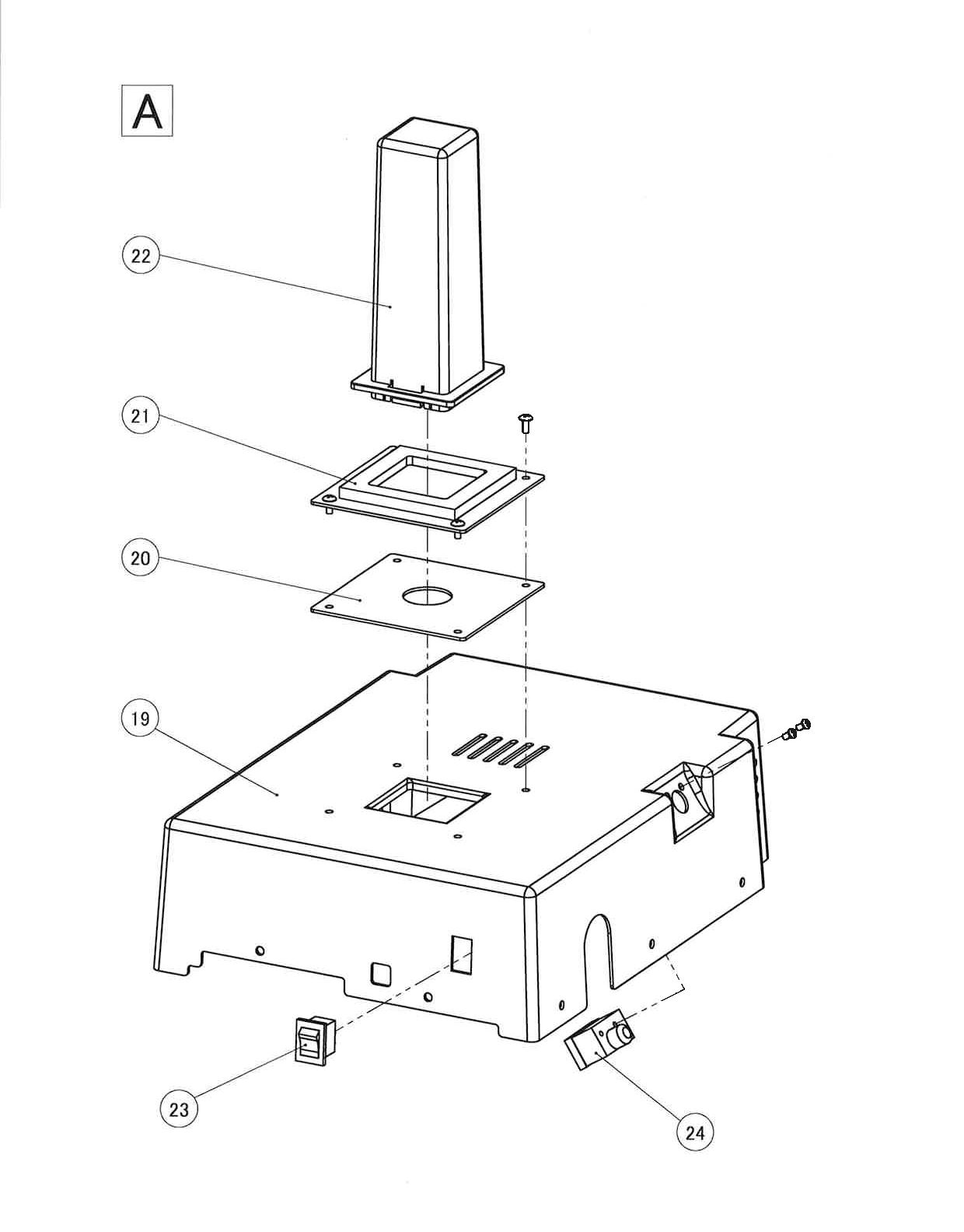

Diagram 3
Product Name
Price
Quantity
SI-150CBK #19 Head Cover
$171.20
SI-150CBK #20 Shaft Guard Spacer
$48.80
SI-150CBK #21 Shaft Guard Joint
$99.20
SI-150CBK #22 Shaft Guard
$24.80
SI-150CBK #23 Motor Switch
$37.60
SI-150CBK #24 Protector
$37.60
Swan SI-150CBK Shaver

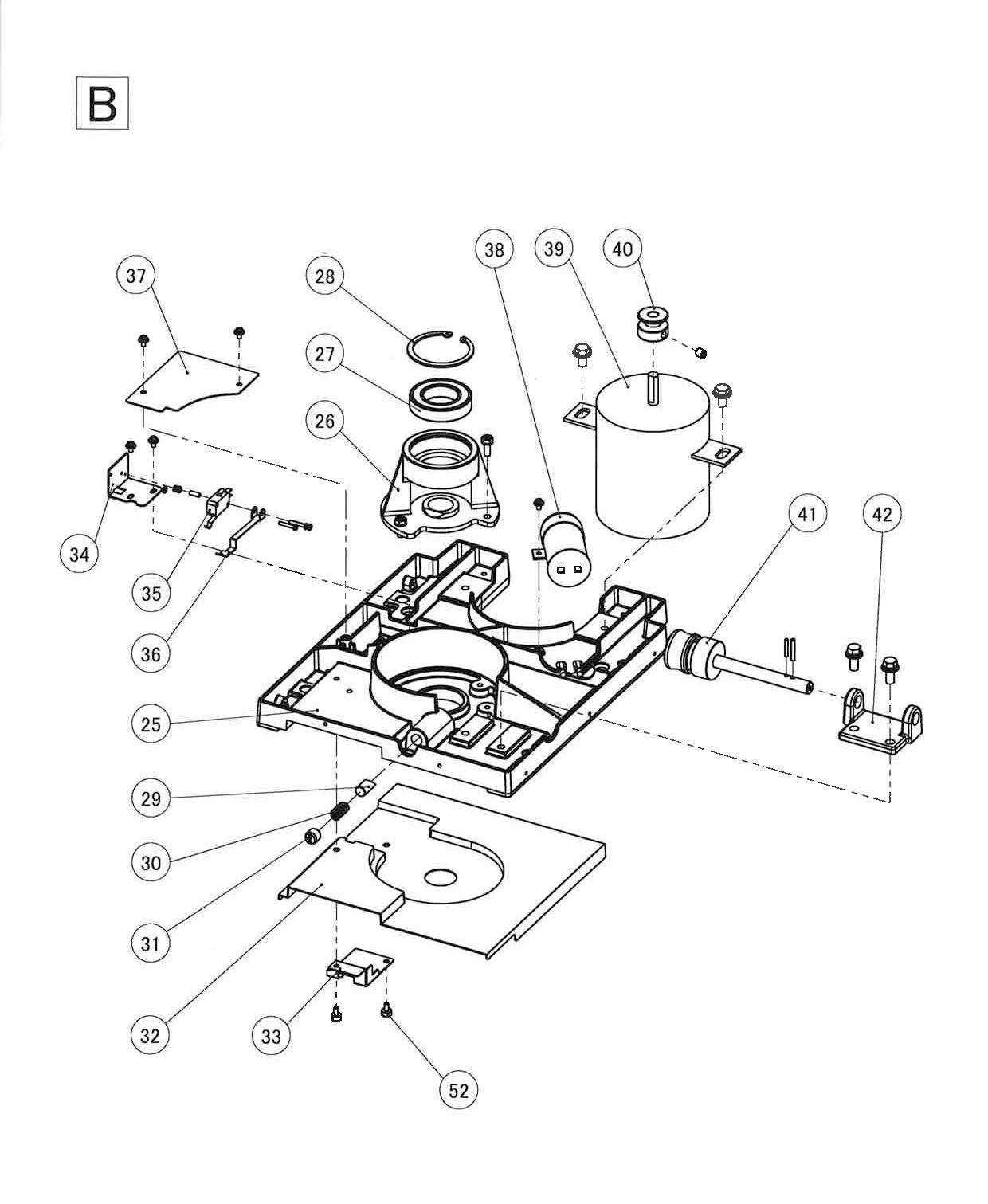

Diagram 4
Product Name
Price
Quantity
SI-150S #09 Ball Bearing
$30.80
SI-150S #11 Motor Pulley
$63.20
SI-150S #30 Brake Shoe
$5.84
SI-100E #38 Worm Spring
$2.88
SI-150CBK #38 Capacitor
$97.60
SI-150CBK #39 Motor
$376.80
SI-150CBK #41 Brake Worm Gear
$68.00
SI-150CBK #42 Worm Shaft Bracket
$24.80
Swan SI-150CBK Shaver

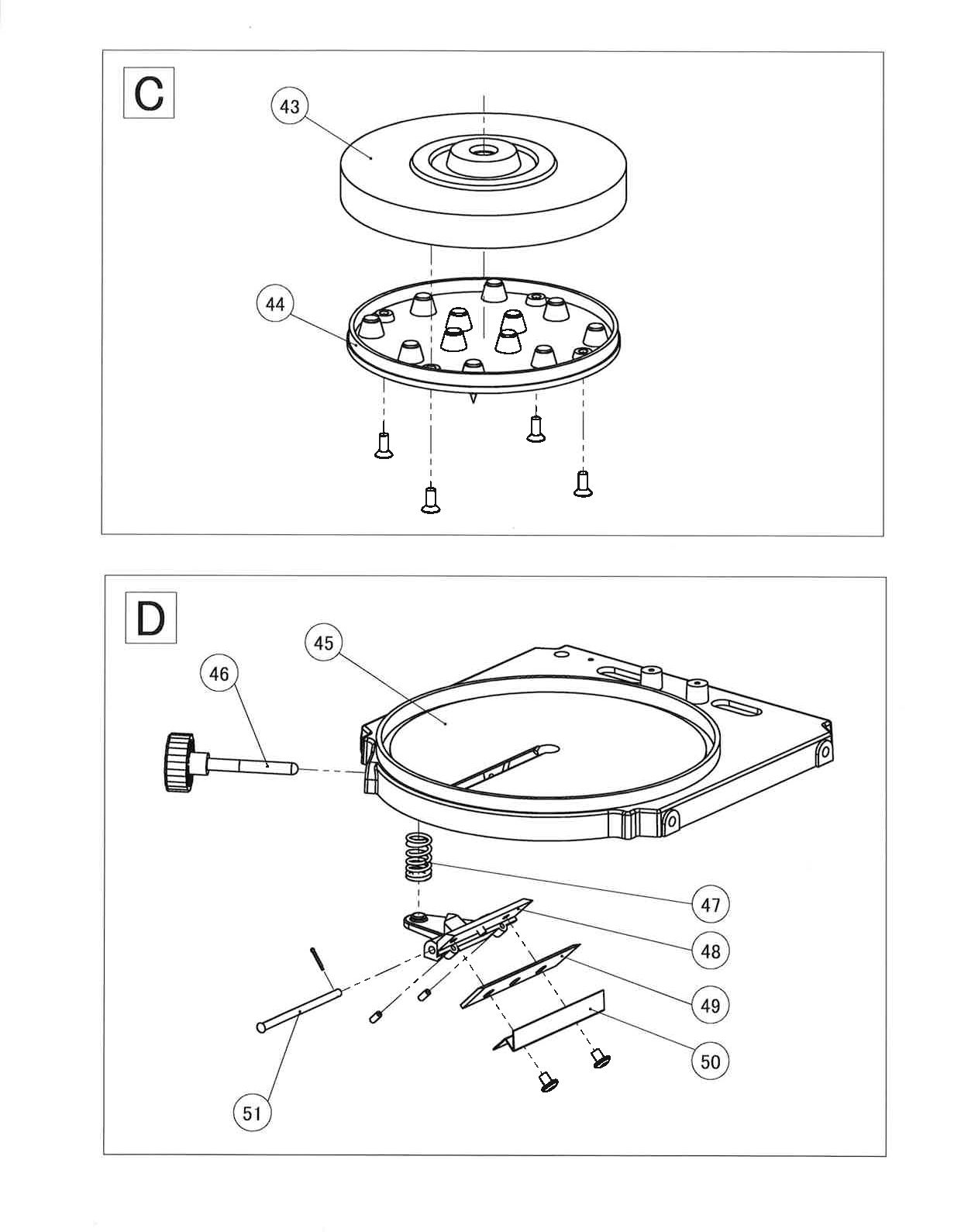

Diagram 5
Product Name
Price
Quantity
SI-150S #30 Brake Shoe
$5.84
SI-100E #38 Worm Spring
$2.88
SI-150S #13 Brake Adjustment Screw
$5.12
SI-100E #9 Ice Block Holder Cover
$33.28
SI-100E #15 One Touch Spring
$4.96
SI-100E #22 Blade Holder
$14.88
SI-100E #12 Blade
$39.20
SI-100E #13 Blade Support
$127.04
SI-100E #14 Cutter Block Pin
$4.96
SI-150CBK #46 Blade Adjustment Knob
$29.60
