Swan SI-100E Shaver
Diagram 1
Product Name
Price
Quantity
SI-100E #1 Main Shaft Handle
$46.80
SI-100E Set Screw for Main Shaft Handle
$2.00
SI-100E #2 Gear Box Cap
$22.48
SI-100E #3 Worm Gear
$142.40
SI-100E #4 Gear Box
$40.32
SI-100E #5 Worm Gear Rubber
$4.96
SI-100E #7 Main Shaft
$197.28
SI-100E #9 Ice Block Holder Cover
$33.28
Out of stock
SI-100E #11 Head Stock Under Cover
$22.32
SI-100E #18 Motor Cover Rubber
$2.48
SI-100E #20 Motor 115 Volt Complete
$402.80
SI-100E Motor Base Washer
$2.00
SI-100E Starter for Motor #20
$20.00
SI-100E Screw M3 for Starter
$2.00
SI-100E Screw M4 for Starter
$2.00
SI-100E #20 Motor 12V DC Complete
$534.00
Out of stock
SI-100E #21 Brake Worm Gear
$69.60
SI-100E Small Pin For Brake Worm Gear
$2.00
SI-100E Large Pin for Brake Worm Gear
$2.00
SI-100E #23 Head Stock
$469.12
SI-100E #32 Gear Box Rubber
$4.96
SI-100E #33 Switch Cover
$3.84
Out of stock
SI-100E #34 Protector
$39.68
SI-100E Clear Cover Protector
$2.48
SI-100E Screw for Protector (Flat Head)
$2.00
SI-100E #35 Motor Switch
$29.76
SI-100E #36 SS Worm Gear
$33.04
SI-100E Pin for SS Worm Gear
$2.08
SI-100E #36 SS Worm Gear 12v DC
$375.04
Out of stock
SI-100E 12V Cone Point Set Screw
$2.00
Out of stock
SI-100E #37 Brake Shoe Bracket
$19.84
SI-100E Set Screw for Brake Adjustment
$4.96
SI-100E #38 Worm Spring
$2.88
SI-100E #39 Brake Shoe
$25.60
SI-100E #40 Worm Shaft Bracket
$18.72
SI-100E #41 Ice Block Holder Crank
$63.04
SI-100E Screw for Ice Block Holder Crank
$2.00
SI-100E #42 Ice Block Holder
$13.04
SI-100E Screw for Ice Block Holder
$2.00
SI-100E #44 115 Volt Plug with Cord
$40.00
Out of stock
SI-100E #44 12 Volt Cord Set
$13.84
Out of stock
SI-100E 12v On/Off Foot Rocker Switch
$27.36
Out of stock
Foot Control, Complete
$38.00
SI-100E Long Screw for Motor Back Plate (No.20-L)
$4.80
SI-100E Nut for Motor Back Plate (No.20-N)
$1.60
Swan SI-100E Shaver

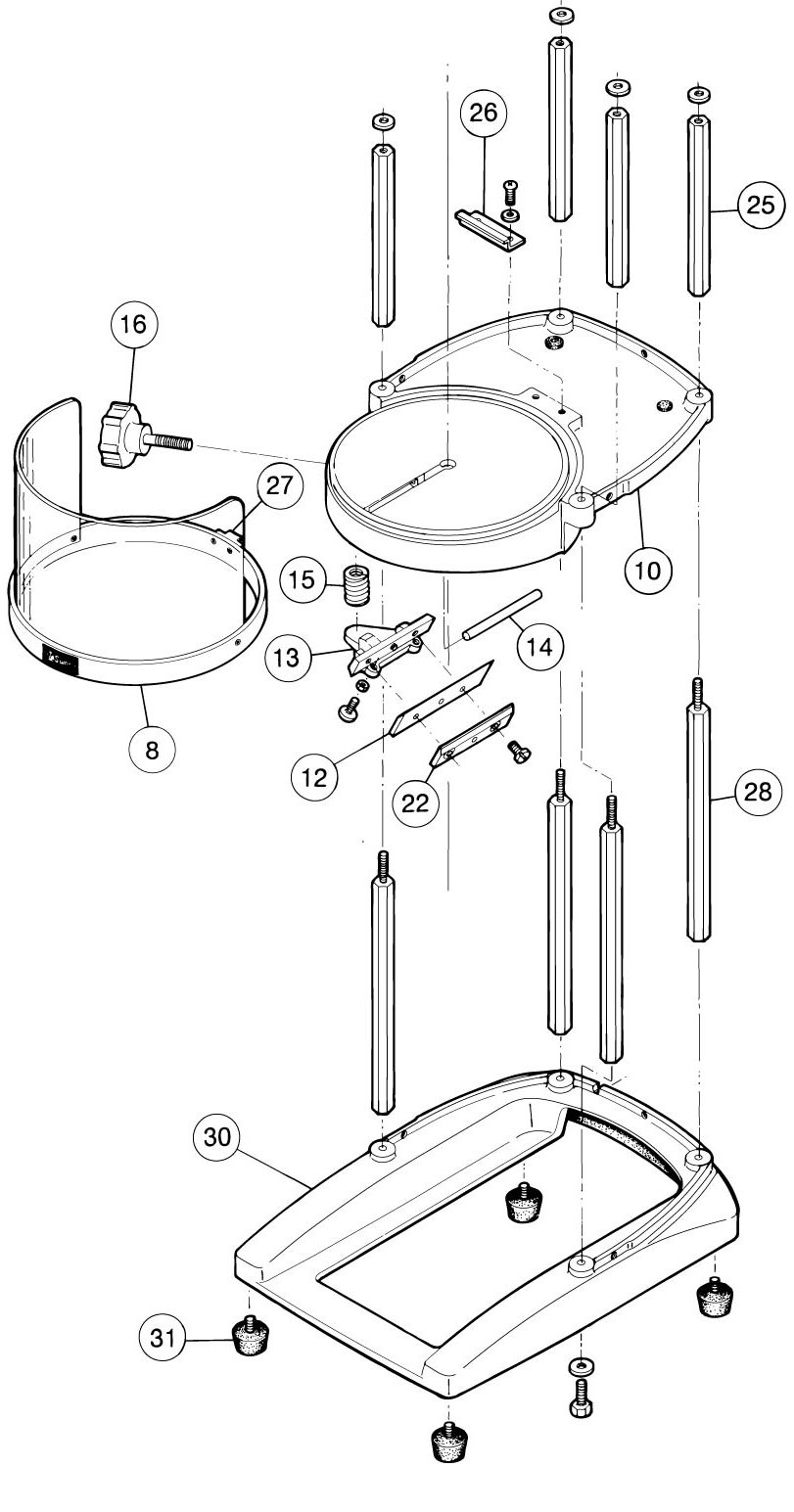

Diagram 2
Product Name
Price
Quantity
SI-100E #8 Polycarbonate Shield
$172.08
SI-100E #10 Shaving Disc with Frame
$494.40
SI-100E #12 Blade
$39.04
SI-100E #13 Blade Support
$127.04
SI-100E Set Screw for Blade Support
$2.00
SI-100E Slotted Hexagon Screw for Blade Adjustment
$2.00
SI-100E #14 Cutter Block Pin
$4.96
SI-100E #15 One Touch Spring
$4.96
SI-100E #16 Blade Adjustment Knob with Decal
$29.76
SI-100E Decal for Blade Adjustment Knob
$2.56
Out of stock
SI-100E #22 Blade Holder
$14.89
SI-100E Screw for Blade Holder
$2.00
SI-100E #25 Upper Frame
$18.40
SI-100E #26 Rear Guard F Stopper
$8.00
SI-100E #27 Rear Guard M Stopper
$8.00
SI-100E #28 Lower Frame
$18.40
SI-100E #30 Base
$234.16
SI-100E #31 Rubber Foot
$4.00
Swan SI-100E Shaver
Diagram 3
Product Name
Price
Quantity
SI-100E #6 Brake Adjustment Hole Plug
$2.48
SI-100E Head Cover Flat Screw
$2.00
SI-100E Decal for Head Cover. Aftermarket item.
$3.04
SI-100E #19 Head Cover with Decal
$179.68
SI-100E #17 Drip Tray with spout
$56.96
SI-100E #24 Main Frame Cover
$120.08
SI-100E #29 Front Panel
$130.32
SI-100E #46 Drain Hose
$8.56
Long White Thumb Screw
$2.00
Short White Thumb Screw
$2.00
Grease, Food Grade 3oz Tube
$12.00
