Swan FM-800E Shaver
Diagram 1
Product Name
Price
Quantity
FM-800E #1 Hopper
$18.00
FM-800E #2 Hopper Base
$150.00
FM-800E #3 Shaving Disc
$320.00
Out of stock
FM-800E #4 Disc Holder
$200.00
FM-800E #5 Impeller Blade Nut
$40.00
Out of stock
FM-800E #6 Impeller Blade
$260.00
FM-800E #7 Central Shaft
$100.00
Out of stock
FM-800E #8 Ball Bearing
$24.00
Out of stock
FM-800E #9 Snap Ring
$2.00
FM-800E #11 Blade Support
$66.00
Out of stock
FM-800E #13 Cutter Block Pin
$24.00
Out of stock
FM-800E #14 Blade
$30.00
Out of stock
FM-800E #15 Blade Adjustment Knob
$48.00
FM-800E #17 Wing Bolt
$6.00
FM-800E #46 Blade Holder Screw
$14.00
FM-800E #48 Blade Adjustment Threaded Screw
$16.00
FM-800E #51 Rubber Seal for Disc Holder #4
$12.00
Out of stock
Swan FM-800E Shaver

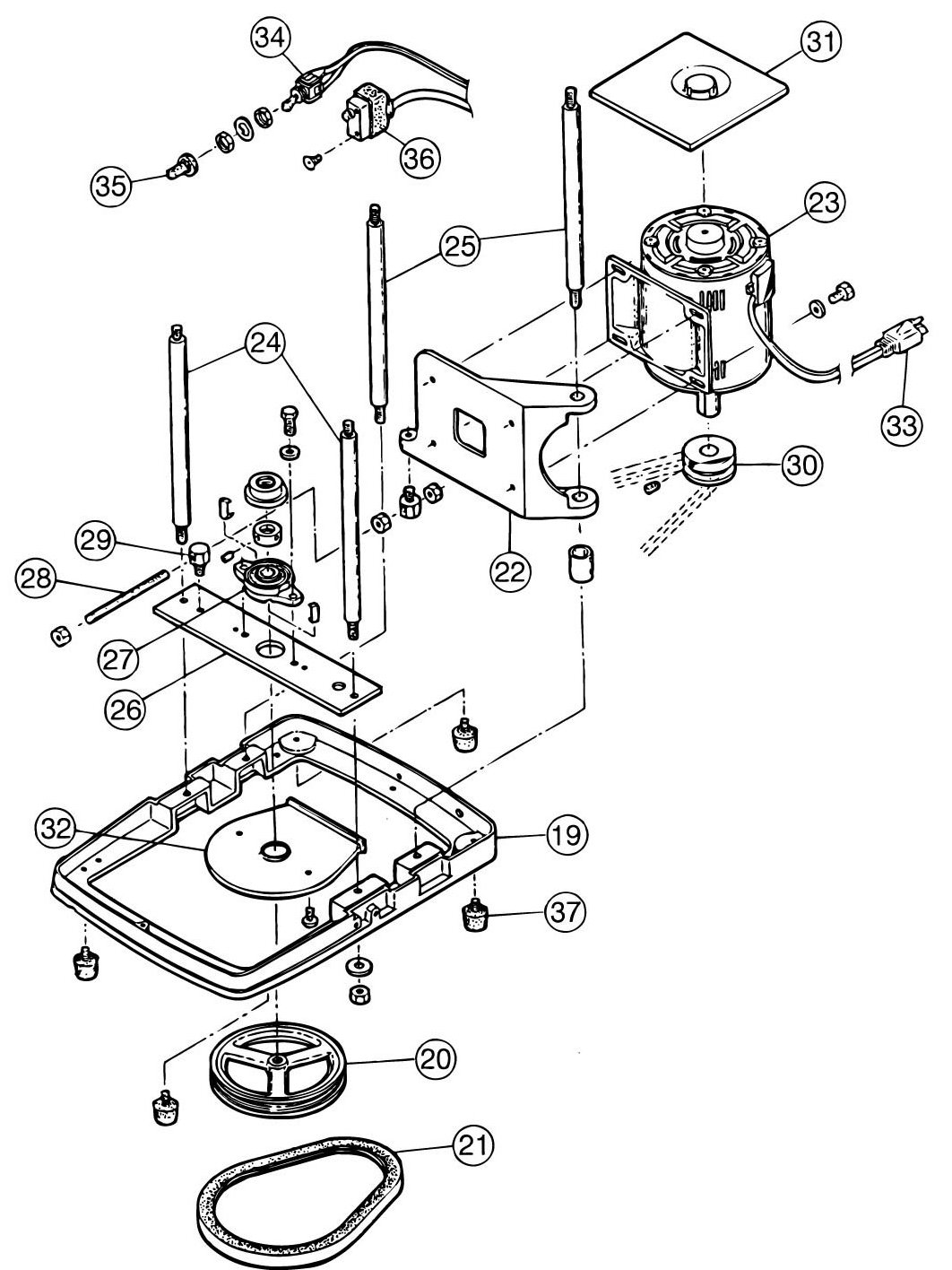

Diagram 2
Product Name
Price
Quantity
FM-800E #22 Motor Support
$80.00
FM-800E #24 Main Frame A
$24.00
FM-800E #28 V-Belt Tension Bolt
$6.00
FM-800E #29 Joint
$18.00
FM-800E #30 Motor Pulley
$60.00
FM-800E #32 Belt Cover
$20.00
FM-800E #36 Protector
$46.00
Out of stock
Swan FM-800E Shaver

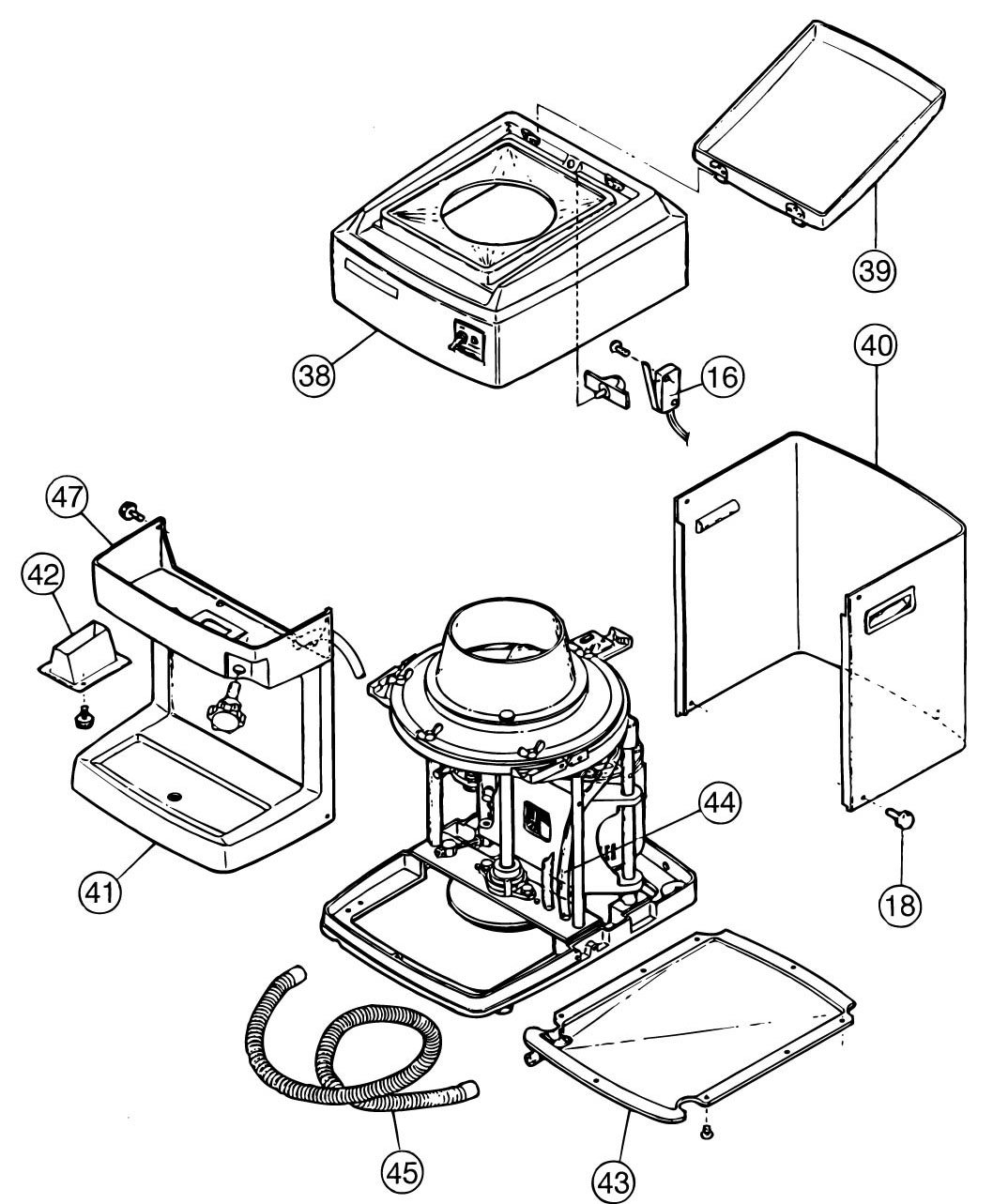

Diagram 3
Product Name
Price
Quantity
FM-800E #38 Head Cover
$220.00
FM-800E #44 Drain Hose (Inside)
$10.00
